EN10305-4 Steel Tube E235 + N
(Feedline Tube)

Home » Products » Hydraulic Range » EN10305-4 Steel Tube E235 + N (Feedline Tube)

EN10305-4 Tube Steel E235 + C

enio305-4 tube steel en235 + c

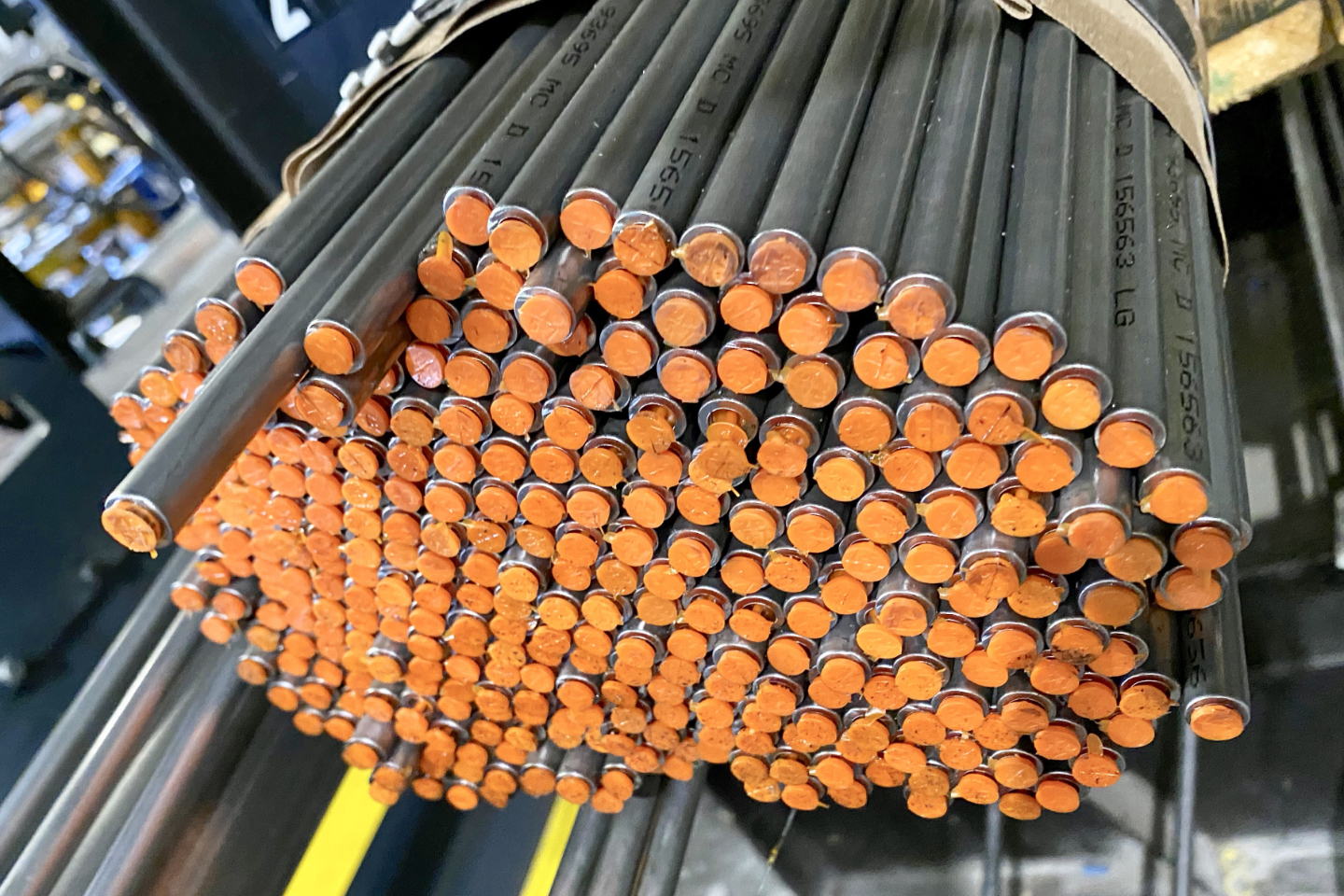

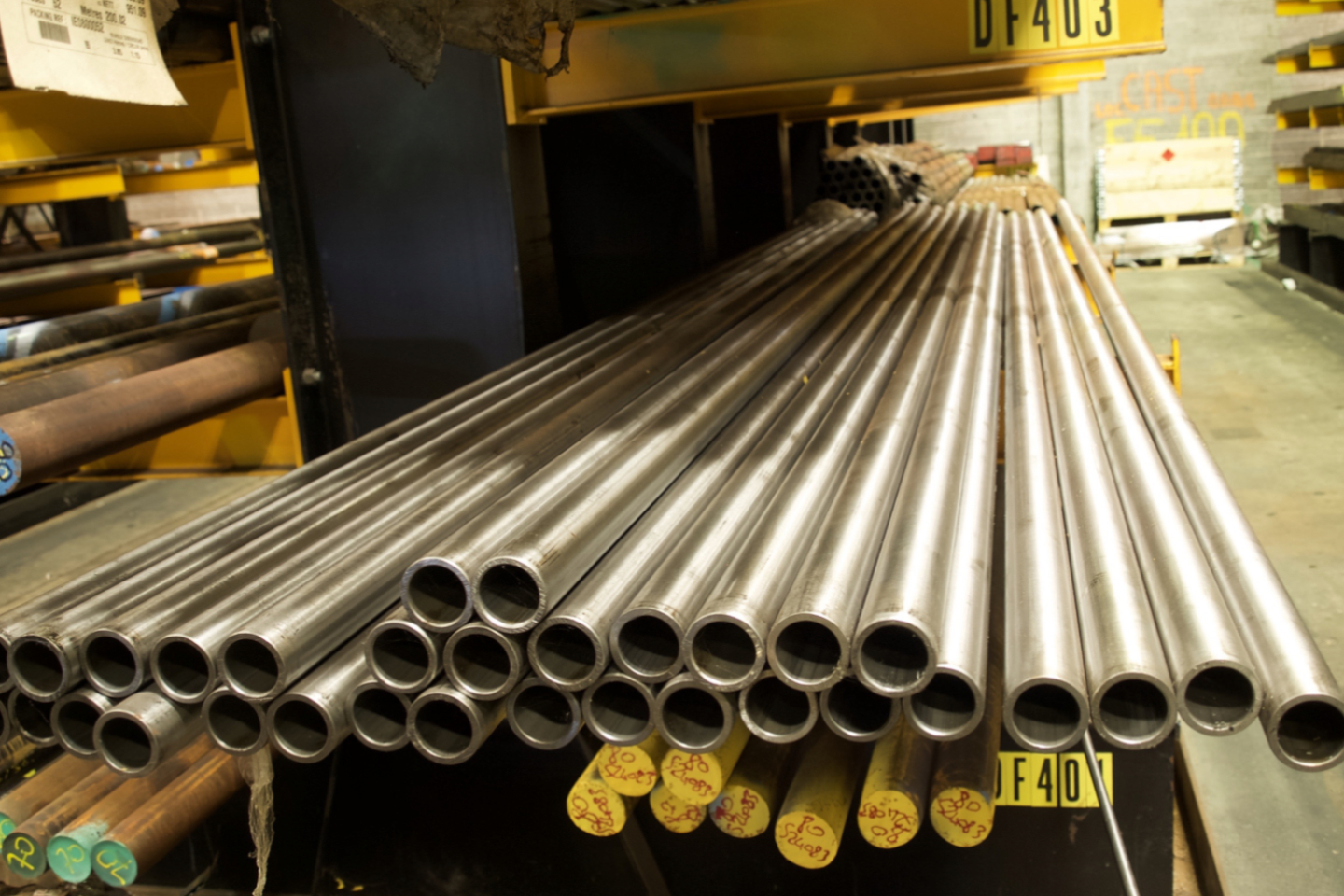

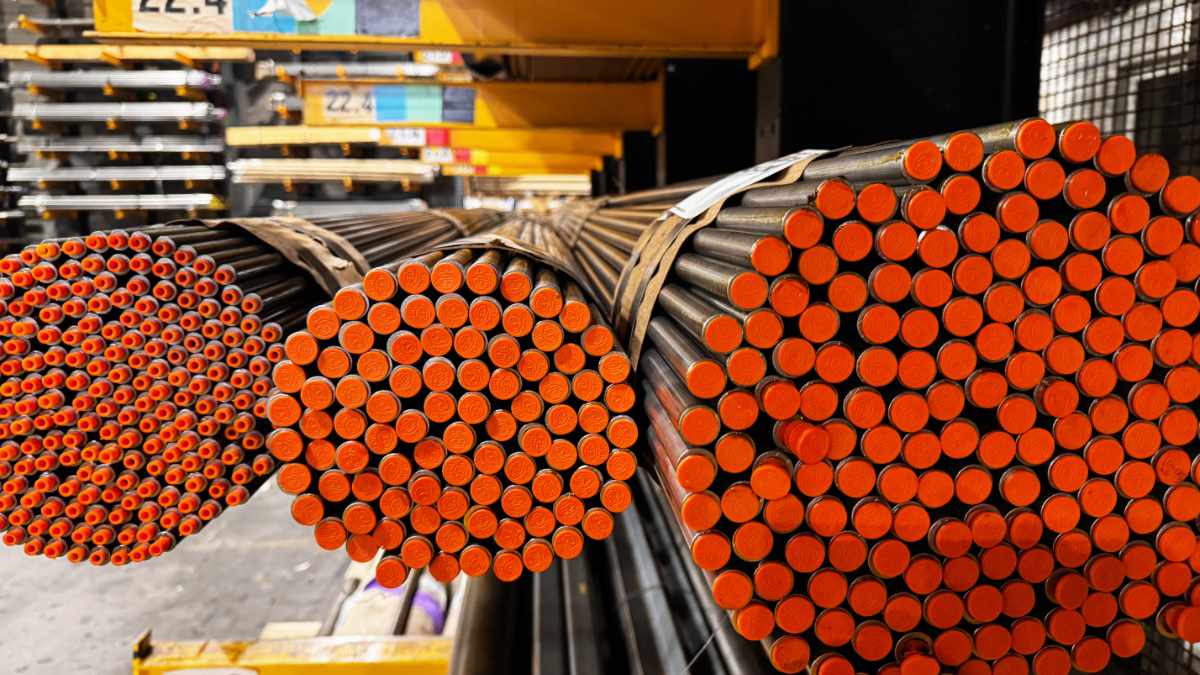

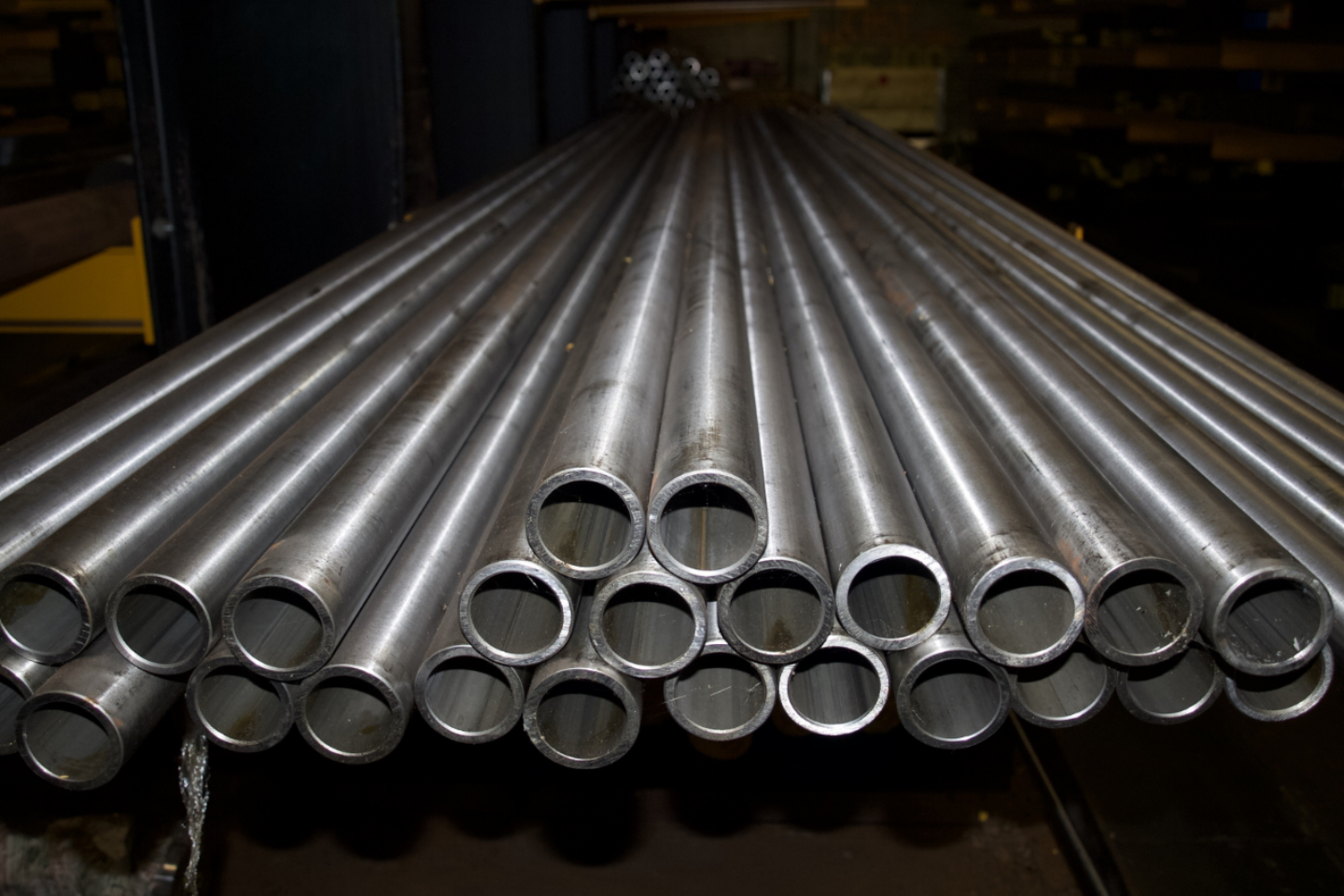

EN10305-4 Steel Tube E235 + N (Feedline Tube) is a cold finished seamless pressure tube for hydraulic feed lines.

To view EN10305-4 Steel Tube E235 + N (Feedline Tube) chemical analysis, specification or shapes & sizes please click on the tabs below.

This product appears in: Hydraulic Range
Tag: hydraulic

Request More Info Get a Quote Call Us Email Us

Standard Dimensions
Specification

OD mm	ID mm	Wall mm
10.00	8.00	1.00
10.00	7.00	1.50
10.00	6.00	2.00
10.00	5.00	2.50
10.00	4.00	3.00
10.00	3.00	3.50
12.00	10.00	1.00
12.00	9.00	1.50
12.00	8.00	2.00
12.00	7.00	2.50
12.00	6.00	3.00
14.00	12.00	1.00
14.00	11.00	1.50
14.00	10.00	2.00
14.00	9.00	2.50
14.00	8.00	3.00
15.00	13.00	1.00
15.00	12.00	1.50
15.00	11.00	2.00
15.00	10.00	2.50
15.00	9.00	3.00
16.00	14.00	1.00
16.00	13.00	1.50
16.00	12.00	2.00
16.00	11.00	2.50
16.00	10.00	3.00
18.00	16.00	1.00
18.00	15.00	1.50
18.00	14.00	2.00
18.00	13.00	2.50
18.00	12.00	3.00
18.00	11.00	3.50
20.00	18.00	1.00
20.00	17.00	1.50
20.00	16.00	2.00
20.00	15.00	2.50
20.00	14.00	3.00
20.00	13.00	3.50
20.00	12.00	4.00
20.00	10.00	5.00
22.00	20.00	1.00
22.00	19.00	1.50
22.00	18.00	2.00
22.00	17.00	2.50
22.00	16.00	3.00
22.00	15.00	3.50
22.00	14.00	4.00
25.00	22.00	1.50
25.00	21.00	2.00
25.00	20.00	2.50
25.00	19.00	3.00
25.00	17.00	4.00
25.00	16.00	4.50
25.00	15.00	5.00
25.00	13.00	6.00
28.00	25.00	1.50
28.00	24.00	2.00
28.00	23.00	2.50
28.00	22.00	3.00
28.00	21.00	3.50
28.00	20.00	4.00
28.00	19.00	4.50
28.00	18.00	5.00
30.00	27.00	1.50
30.00	26.00	2.00
30.00	25.00	2.50
30.00	24.00	3.00
30.00	23.00	3.50
30.00	22.00	4.00
30.00	20.00	5.00
30.00	18.00	6.00
35.00	31.00	2.00
35.00	30.00	2.50
35.00	29.00	3.00
35.00	28.00	3.50
35.00	27.00	4.00
35.00	25.00	5.00
35.00	23.00	6.00
38.00	35.00	1.50
38.00	34.00	2.00
38.00	33.00	2.50
38.00	32.00	3.00
38.00	30.00	4.00
38.00	28.00	5.00
38.00	26.00	6.00
50.00	46.00	2.00
50.00	44.00	3.00
50.00	42.00	4.00
50.00	40.00	5.00
50.00	38.00	6.00
50.00	34.00	8.00
50.00	32.00	9.00
50.00	30.00	10.00

EN Number	UNS	Material Standard
ST37.2	E235	EN 10305-2
