316L/1.4404 Stainless Bar

Type 316L is an austenitic chromium-nickel stainless steel containing molybdenum which increases general corrosion resistance, improves resistance to pitting and provides strength at elevated temperatures. Type 316L is non-hardenable by heat treatment and is generally considered to be weldable by common techniques. Type 316L provides excellent formability and fabricability which is typical of the austenitic stainless steels.

Used extensively across all industries including marine, medical, architectural, pharmaceutical, chemical, food, oil & gas, brewing, textile among others.

To view 316L Stainless Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tags: ,

Request More Info Get a Quote Call Us Email Us

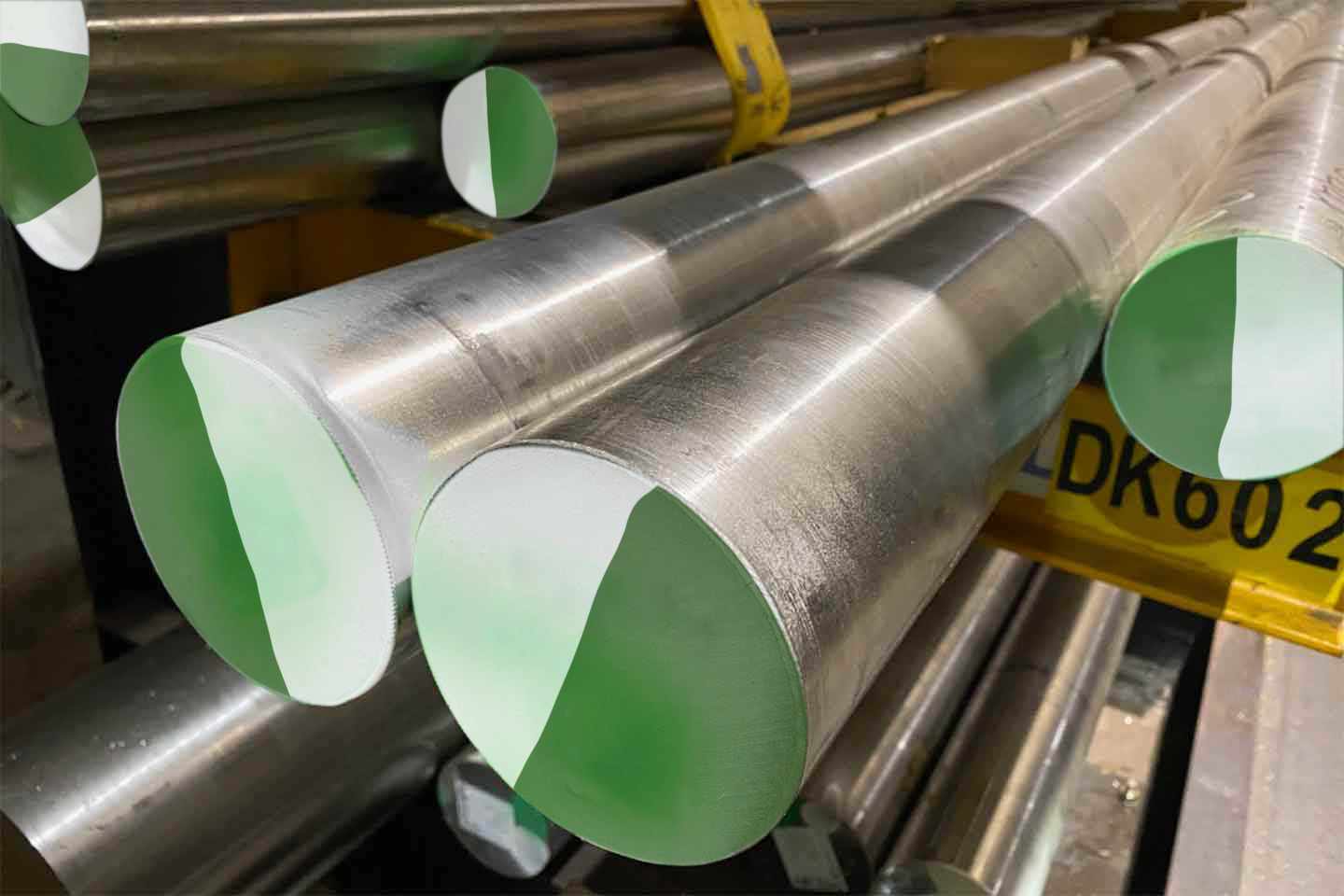

Rounds (mm)
6.00
8.00
10.00
12.00
16.00
20.00
25.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
85.00
90.00
95.00
100.00
105.00
110.00
115.00
120.00
125.00
130.00
135.00
140.00
145.00
150.00
155.00
160.00
165.00
170.00
175.00
180.00
185.00
190.00
200.00
205.00
215.00
220.00
225.00
230.00
240.00
250.00
260.00
270.00
280.00
285.00
300.00
320.00
325.00
340.00
350.00
375.00
400.00
425.00
450.00
Rounds (inch)
1/4
5/16
3/8
1/2
9/16
5/8
3/4
7/8
1
1 1/8
1 1/4
1 3/8
1 1/2
1 5/8
1 3/4
2
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
3 3/4
4
4 1/2
4 3/4
5
5 1/2
5 3/4
6
6 1/2
6 3/4
7
8
9
10
12
13
14
15
16

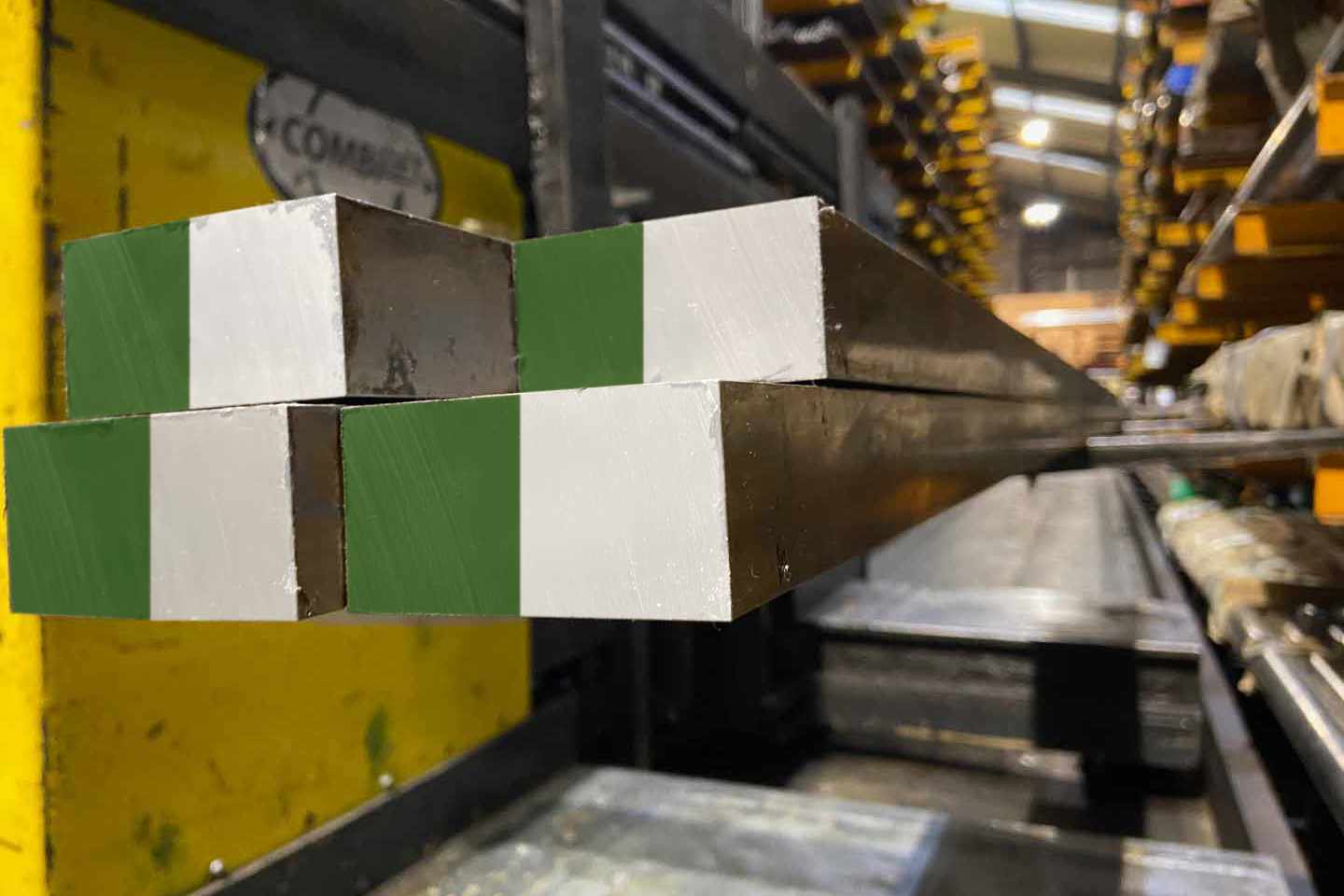

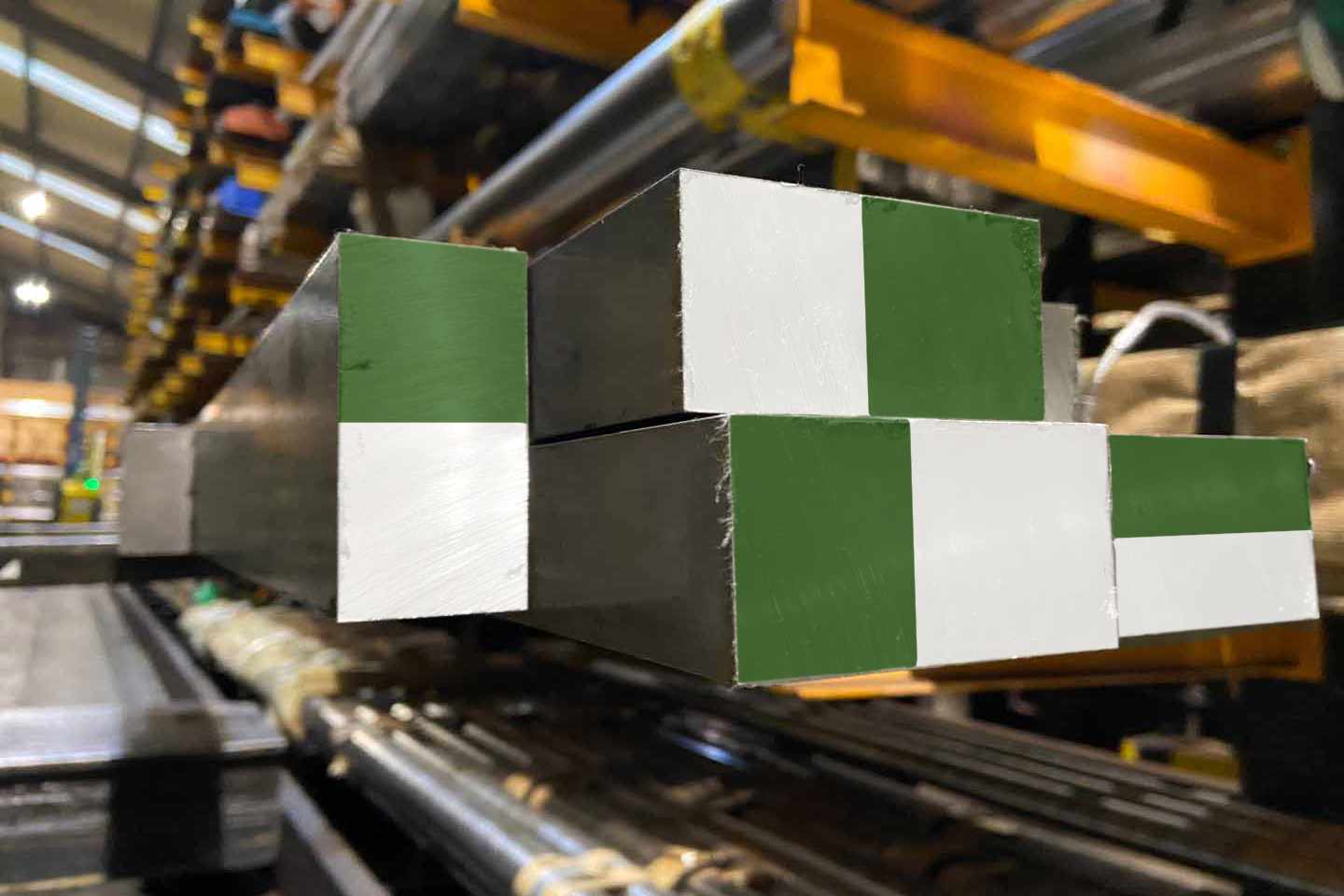

Squares (mm)
6.00
8.00
10.00
12.00
20.00
25.00
30.00
35.00
40.00
50.00
55.00
60.00
65.00
70.00
80.00
85.00
90.00
95.00
100.00
Square (inch)
1/4
5/16
3/8
1/2
5/8
3/4
7/8
1
1 1/4
1 1/2
1 3/4
2
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
4

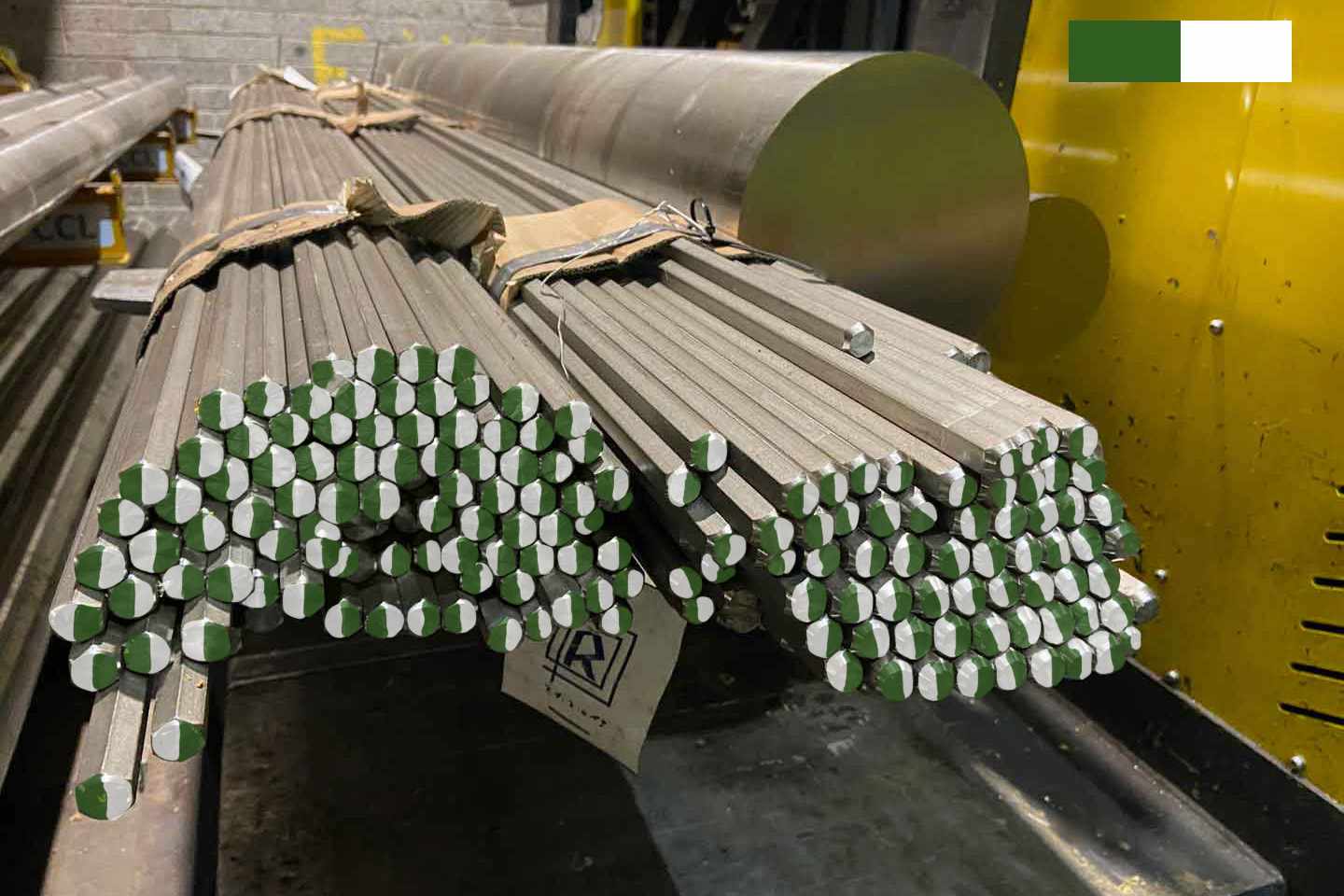

Hexagons (mm)
5
6
8
10
12
13
14
17
19
20
22
24
30
32
41
50
Hexagons (inch)
1/4
3/8
1/2
5/8
3/4
7/8
1
1 1/8
1 1/4
1 3/8
1 1/2
1 5/8
1 3/4
1 7/8
2

This is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

Steel NumberSymbolAISIUNSBS 970 I983
1.44015CrNiMo17-12316S31600316S31
1.44042CrNiMo17-12316LS31603316S11
CMnSiCrNiMoPSNiFe
.03max2.0max.75max16-1810-142.0-3.0.045max.030max.10maxBalance
